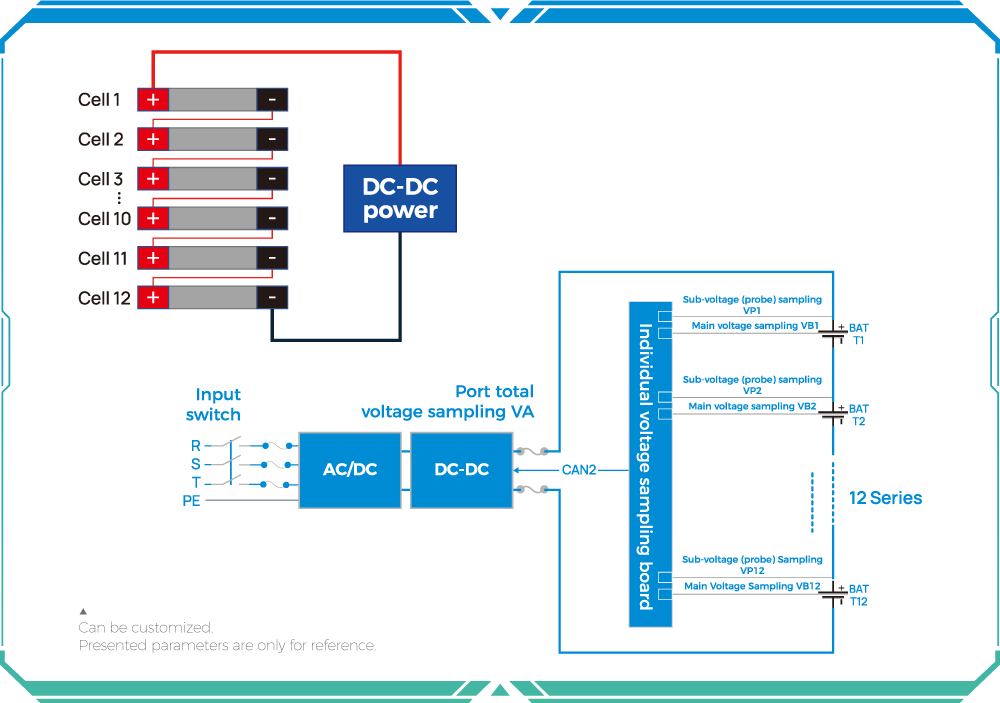

AC/DC converters, energy storage containers, and DC-DC formation and grading are electrically connected through 700V/1500V DC bus coupling. The plant energy can be dispatched in real time by the EMS energy management system.
12 cells are connected in series, and each cell is equipped with a bypass switch board (optional). When any cell in the series reaches the cut-off condition, it will be cut out in order of priority until the last cell in the same serial connection.

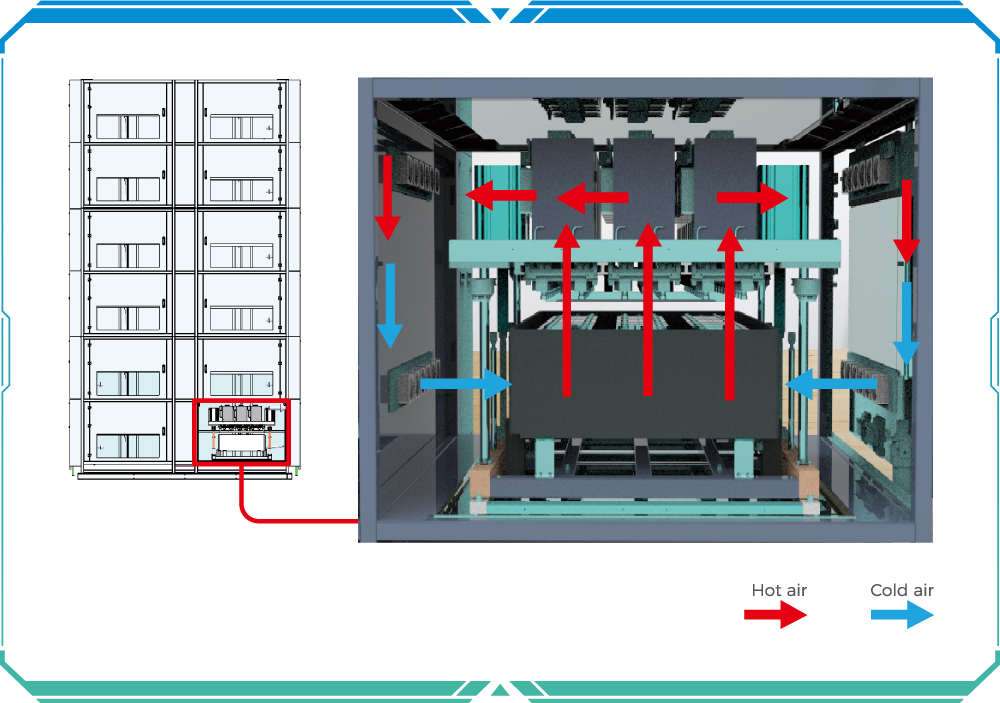

The power module is integrated in the chamber, and the temperature is controlled by water cooling system.
By adopting the charge and discharge curve of the cell capacity and based on the AI big data, the complete charge and discharge curve of the cell capacity can be estimated. The system includes cell feature data export, offline big data training modeling, online reconstruction prediction, iterative optimization model, etc.
